White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB
This wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port.
Features
- Made of high quality brand new ABS+PC, anti-collision, flame retardant, resistance to impact.
- All the materials complied with ROHS standard.
- Fiber cable inlets in 3 directions, supports the cable inlets for different scenarios.
- white color, compact size, large storage and management area.
- max. 2 SC or LC duplex couplers
- wall mount screws included during delivery.
Specification
| Model | FTB86I |
| Dimension(H×W×D) mm | 70*116*15MM |
| Max.capacity | 2 SC |
| Humidity | 93%(+30°C) |
| Connect Models | Fusion splicing, Mechanical Splicing, FMC |
| Material | ABS+PC |
| Air Pressure | 70KPa~106KPa |
| Working temperature | -25~+60°C |
| Installation Models | Wall Mounted |
| Drop cable (Flat) | Indoor Flat Drop cable 2mm×3mm |
| Color | White |
Product details

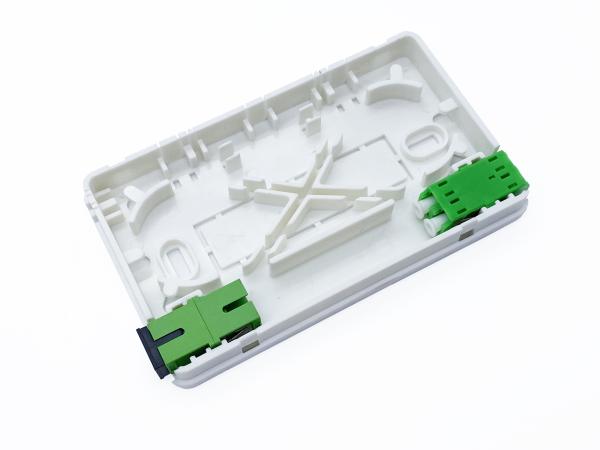

1SC adapter port, 2 pcs ftth soft cable or drop cable 2x3mm. both sides and front have cable ports.

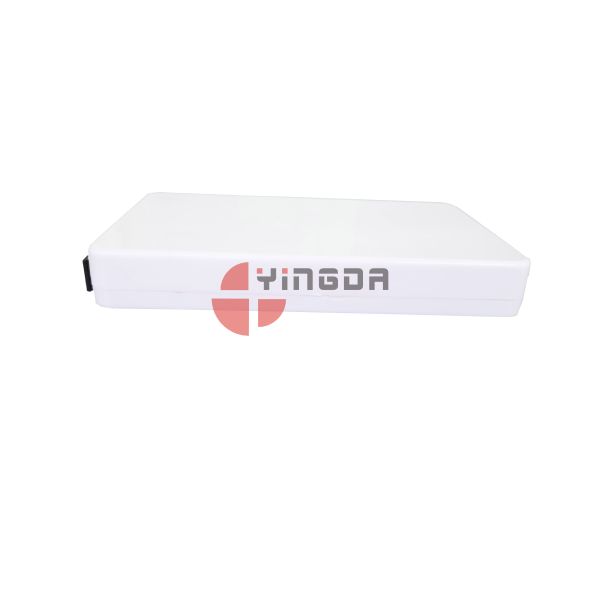

the box is 2clips for open and close, tightly closed. back is wall mount holes for screws.
2 pieces SC adapters, 2 pieces Pigtail SC/APC 0.5meter G657A1 LSZH; the lid and cover is seperated.
there is large cable routing area, fast and easy to construct. it is better than 86 box.
Standards Compliance
- TIA/EIA 568.C, Optical Fiber Cabling Components Standard
- IEC61754, Fiber optic connector interfaces Standard
- ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
- GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
- RoHS (Directive on Restriction of Hazardous Substances. )
Wall-mounted installation
Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box; to match up the holes and use bolt to fasten.
